unwinding unit with Auto loading function , with EPC & Auto stop when film finished.
Auto rope feeding, auto folding .
Independent up & down temperature controller for heat sealing of the bag edge, sealing line is firm and flat.
Skype
E-mail Us
PDF Download
Video Link
Main functions and technical points:
★unwinding unit with Auto loading function , with EPC & Auto stop when film finished.
★Auto rope feeding, auto folding .
★ Independent up & down temperature controller for heat sealing of the bag edge, sealing line is firm and flat.
★The main control system is the servo tracking system, heat-sealing without tension.
★The whole machine is equipped with 11 servo systems as standard.
★Automatic labeling function on rewinding unit, the maximum speed is 10 rolls/min.
★Machine can also produce flat bag rolling bags.
★Folding form: double-V-fold.

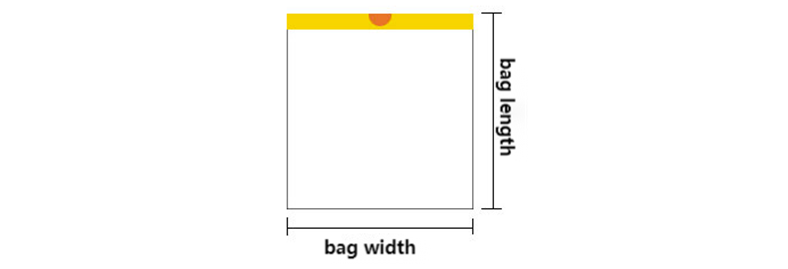

Bag drawings:
Machine Price:
|
Machine Name |
Quantity |
Unit Price FOB NINGBO |
|
BLD820-AR300 Drawstring garbage bag making machine |
1 SET |
33000.00USD |
Main technical parameters:
|
Model |
BLD820-AR300 |
|
Voltage |
380v 3 phase |
|
Total power |
22kw |
|
Average Power |
10KW |
|
Air requirements |
0.4~0.6MPa, |
|
Suitable material |
HDPE/LDPE |
|
Bag length |
750mm |
|
Raw material Film width |
800mm |
|
bag width |
300~700mm |
|
Finished roll width |
100~300mm |
|
Film thickness |
0.01-0.05mm |
|
Max. speed |
150P/min |
|
Max. Unwinding diameter |
800mm |
|
Max. Rewinding diameter |
150mm |
|
Weight |
4500kg |
|
Size |
9500x1900x2300mm |
Main configuration:
|
Name |
Brand |
Power / Model |
Note |
|
Main touch screen |
MCGS |
7” |
1 pc |
|
Rewinder touch screen |
MCGS |
7” |
1 pc |
|
Main controller |
Motion controller |
MCT-III |
1pc |
|
Rewinding control PLC |
XINJIE |
XC3-42T-E |
1 pc |
|
Main Traction Servo |
ELESY |
4.5KW |
1 pc |
|
Secondary Traction Servo |
ELESY |
3KW |
1 pc |
|
Knife servo |
ELESY |
3KW |
1 pc |
|
Feeding servo |
ELESY |
1.5KW |
1 pc |
|
Folding servo |
ELESY |
1.5KW |
2 pc |
|
Loop feeding servo |
ELESY |
0.75KW |
1 pc |
|
Loop unwinding servo |
ELESY |
1.5KW |
1 pc |
|
Rewinding Servo |
ELESY |
0.75KW |
3 pc |
|
Labeling servo |
ELESY |
0.4KW |
1 pc |
|
Unwinding Inverter |
DELTA |
0.75KW |
1 pc |
|
Temperature Controller |
OMRON |
|
6 pcs |
|
photoelectric sensor |
Leuze (Germany) |
PRK5.M3/2N |
Full set |
|
Proximity sensor |
Leuze (Germany) |
IS122 |
Full set |
|
Color mark sensor |
SICK (Germany) |
KTS-WB4114 |
1pc |
|
Electromagnetic valve |
AIRTAC |
----- |
Full set |
|
Switch button |
Schneider (France) |
ZB2 Series |
Full set |
|
Contactor |
Schneider (France) |
LC1N Series |
Full set |
|
Breaker |
Schneider (France) |
E9 Series |
Full set |
|
Correction system |
Eurdow |
|
1 set |
|
Auto sticker |
|
|
1 set |
Business Item:
1. Terms of payment: pay 30% for deposit by T/T before arrange manufacture, the 70% balance paid before shipment by T/T.
2. Delivery time: 30 days after received the 30% deposit.
3. Packaging: by stretch film ; Wooden Tray or wooden box need extra fee.
4. Machine adjustment: The sellers don’t provide the adjustment. We will supply the video. (If need the adjustment,the buyer should pay for the worker salary one day 100usd, double ways air tickets, hotel & food )
5. Document: B/L, packing list, invoice ,Form E,CO
6. Guarantee: 1 year. First year maintain the main electric part free, but the buyer will charge for express fees. From second year, the buyer will change maintain fees and express fees.
7.Quotation value day: 60days
